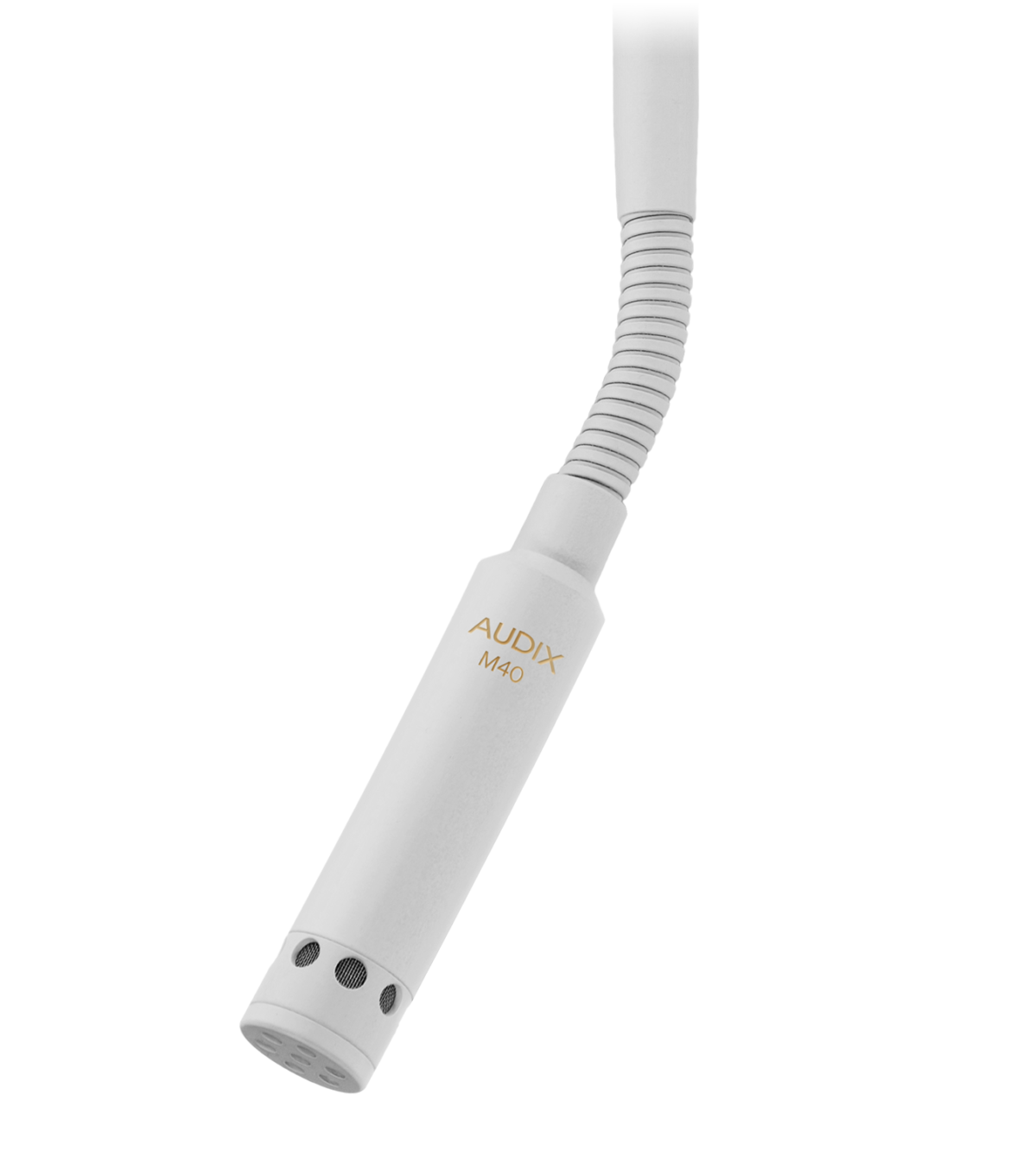

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking. The primary applications for the ceiling-mounted M40 include Video & Teleconferencing (VTC), distance learning, hospital rooms, surveillance, and ambient room miking.

The M40 ceiling microphone has complete immunity from RF interference caused by cell phones and GSM devices. The M40, which comes with a cardioid capsule, is also available with hypercardioid or shotgun capsules, allowing for the microphone to be used in a wide variety of applications.

The M40 installed ceiling microphone is easy to install requiring only that a 5/8 inch hole be drilled in the ceiling with no additional tools required. The cable assembly is equipped with a terminal block connector. For installations where plenum rated cable is to be used a UL rated, metal plenum junction box is available.

Designed, machined, assembled, and tested by Audix in the USA.


Transducer Type Condenser
Frequency Response 60 Hz – 10 kHz
Polar Pattern Cardioid, Hypercardioid, Shotgun
Output Impedance 150 ohms
Sensitivity 37 mV / Pa @ 1k
Signal/Noise Ratio (A-weighted) 72 dB
Equivalent Noise Level (A-weighted) 22 dB
Maximum SPL @ .5% THD ≥130 dB
Dynamic Range 108 dB
Power Requirements 18 – 52 V Phantom
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish Copper and Steel Powder Coat
Weight 0.7 oz / 20 g
Length 2.1 in / 54 mm
