6 input channels of amazing audio processing for a variety of applications including live streaming, huddle spaces, conference rooms, houses of worship and more.

  • Four models with 6 mic/line inputs and 4 line outputs
  • Six channels of AEC – acoustic echo cancellation
  • All models include a configurable USB Audio interface
  • AT models provide Dante audio networking with Dante Domain Manager and AES67 support
  • V models include up to eight VoIP lines
  • Compact half rack size

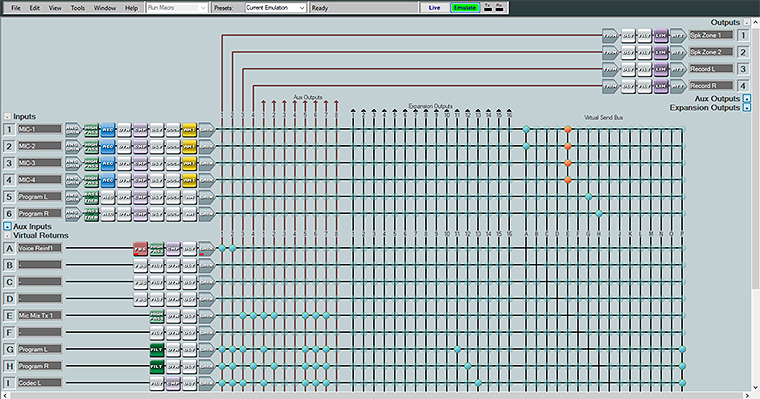

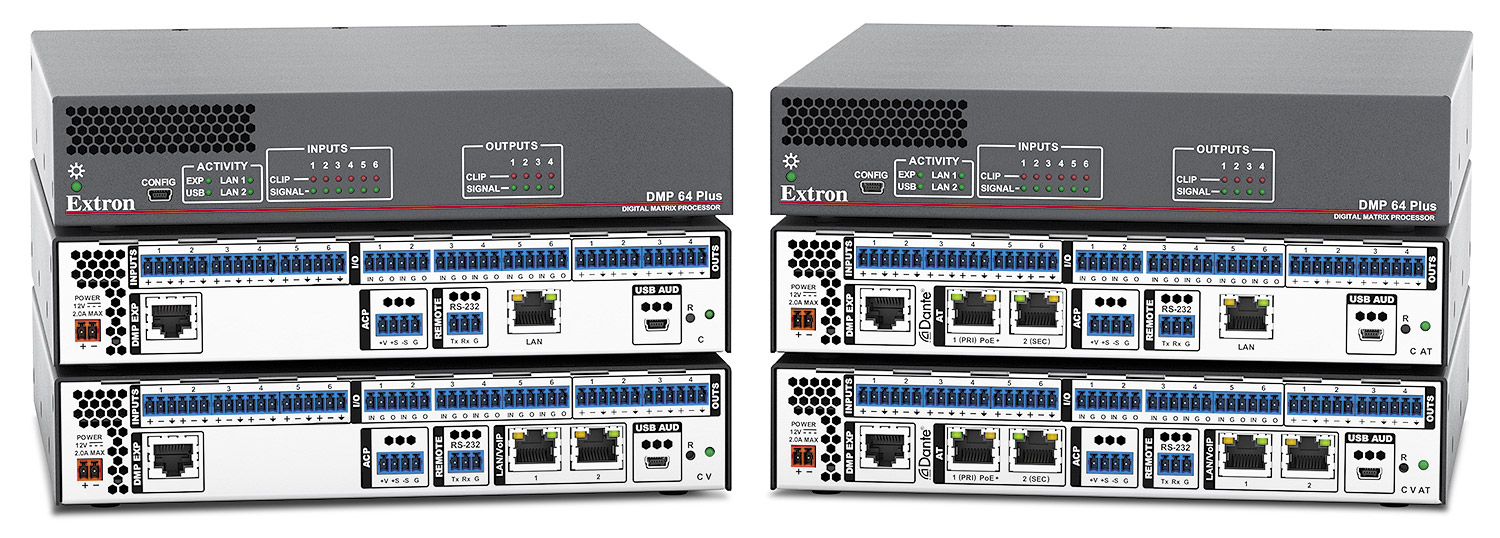

The Extron DMP 64 Plus series of compact Digital Matrix Processors features six DSP input channels with AEC, in only a half rack space. With a flexible mix matrix, a USB audio interface, and 6×4 analog connectivity, the DMP 64 Plus provides the ability to easily connect and route signals to accommodate system requirements. The AT models can be powered by PoE+ and provide 32×16 Dante connectivity for popular Dante microphone arrays, and other Dante devices, while the V models include up to eight VoIP lines for collaboration applications. Featuring an ACP bus for audio control panels, an expansion port for bidirectional digital audio connection with a DTP CrossPoint® or another DMP, eight audio file players, and configurable macros, the DMP 64 Plus can be used in a wide variety of smaller systems.


Need help programming this product? We have certified Extron programmers that can help. Call 503-598-8968 or email sales@projectus.com
