• All‑in‑one 8×4 4K matrix switcher, scaler, audio DSP with AEC, audio power amplifier, and control processor
  • Two DTP inputs and six HDMI inputs
  • Two HDMI outputs and two independently scaled DTP outputs
  • Integrated DTP inputs and outputs support transmission of video, control, and audio up to 330 feet (100 meters) over a shielded CATx cable
  • Advanced Extron Vector™ 4K scaling engine
Categories: , Tags: , , , , ,

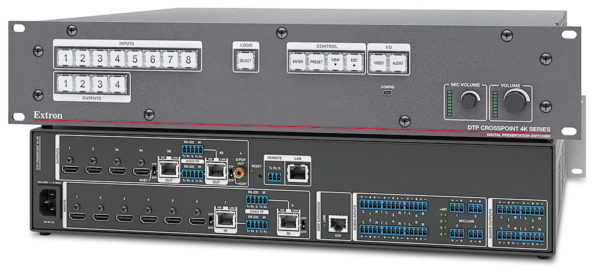

The Extron DTP CrossPoint 84 4K is an 8×4 matrix switcher with HDMI and DTP® twisted pair inputs and outputs, 4K scaling, audio DSP with AEC, an integrated audio power amplifier, and a built‑in IPCP Pro control processor. It provides complete system integration in a 2U enclosure, supporting applications requiring several displays, sound reinforcement, and AV system control. All inputs and outputs support video resolutions up to 4K. The DTP matrix outputs are powered by Extron Vector™ 4K scaling technology, capable of seamless switching and scaled resolutions up to 4K. DTP extension allows connection to DTP endpoints and XTP® matrix switchers. Full audio optimization is provided by a built-in Extron ProDSP™ audio digital signal processor that can be linked to a second Extron DSP for I/O expansion.

The DTP CrossPoint 84 4K delivers all of the core functionality of a conventional AV system, in a single 2U enclosure that replaces as many as ten separate components. In addition to saving substantial space in a rack, the compact enclosure makes it easy to standardize on a common system design throughout a facility, and to adapt this DTP CrossPoint® matrix switcher to many different environments where equipment space may be limited. This fully-featured presentation matrix switcher is highly versatile and is ideal for presentations with content on multiple displays, and for providing a variety of AV system configurations to serve multi-purpose and divisible rooms.


Need help programming this product? We have certified Extron programmers that can help. Call 503-598-8968 or email sales@projectus.com
